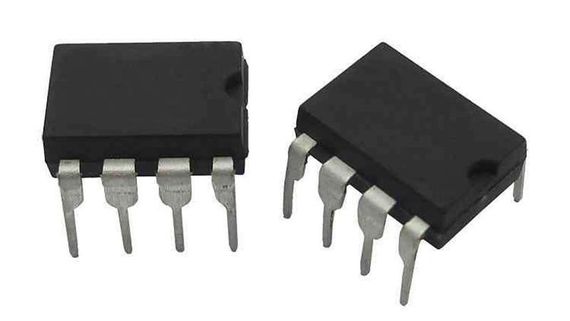

BA4558 Мікросхема Подвійний операційний підсилювач

Подвійний операційний підсилювач BA4558 / BA4558F / BA4558N

Manufacturer: ROHM Semiconductor Product Category: Operational Amplifiers - Op Amps RoHS: Details Mounting Style: Through Hole Package/Case: DIP-8 Number of Channels: 2 Channel Supply Voltage - Max: 30 V SR - Slew Rate: 1 V/us Vos - Input Offset Voltage: 6 mV Supply Voltage - Min: 8 V Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Ib - Input Bias Current: 500 nA Operating Supply Current: 6.5 mA Shutdown: No Shutdown CMRR - Common Mode Rejection Ratio: 70 dB Series: BA4558 Packaging: Bulk Amplifier Type: Low Noise Amplifier Height: 2.59 mm Length: 9.3 mm Product: Operational Amplifiers Supply Type: Single, Dual Technology: Bipolar Width: 6.5 mm Brand: ROHM Semiconductor Maximum Dual Supply Voltage: +/- 18 V Minimum Dual Supply Voltage: +/- 4 V Operating Supply Voltage: 8 V to 30 V, +/- 4 V to +/- 15 V Pd - Power Dissipation: 800 mW Product Type: Op Amps - Operational Amplifiers PSRR - Power Supply Rejection Ratio: 90.46 dB Factory Pack Quantity: 2000 Вкладені Категорії: Amplifier ICs Voltage dB Gain: 100 dB Unit Weight: 2,268 g
