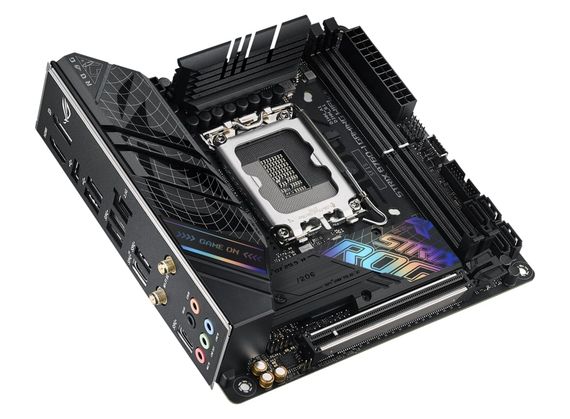

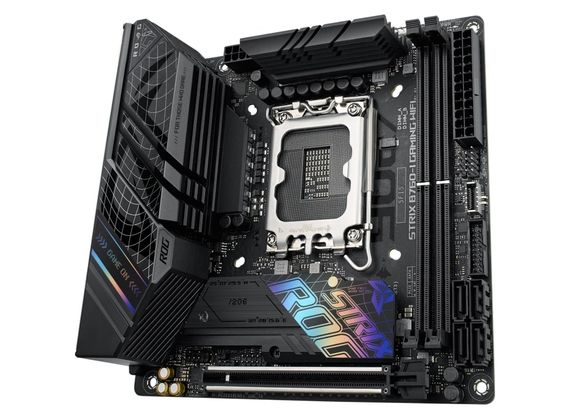

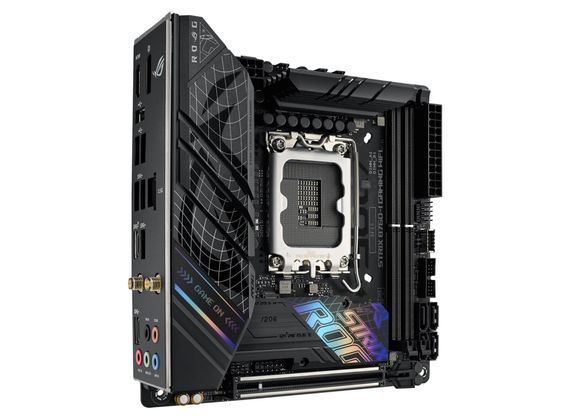

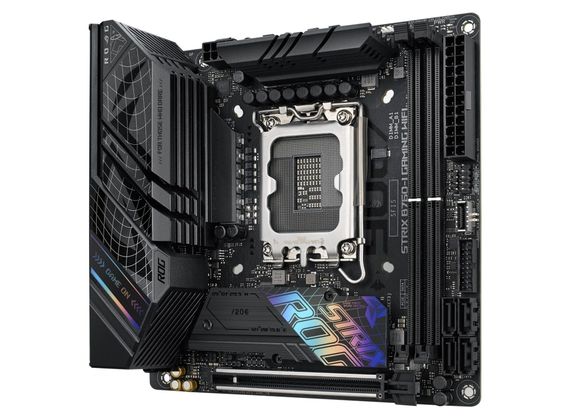

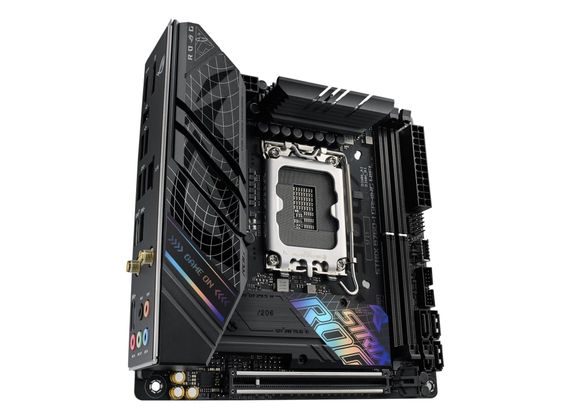

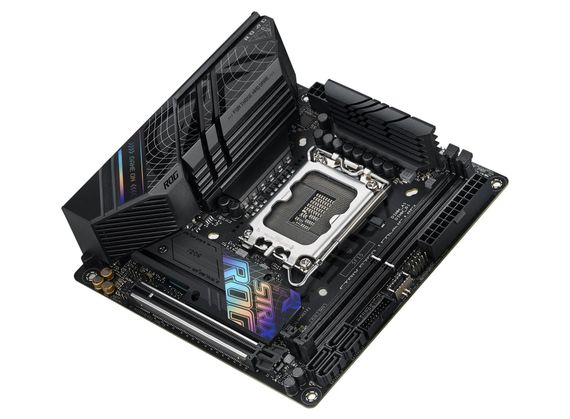

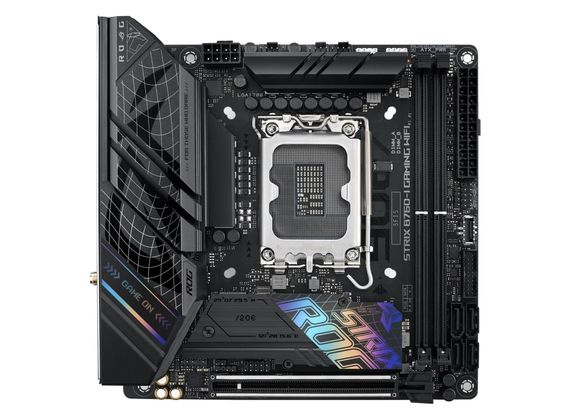

Материнcкая плата ASUS ROG STRIX B760-I GAMING WIFI s1700 B760 2xDDR5 M.2 HDMI DP Wi-Fi BT mITX 90MB1D90-M1EAY0

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

PRE-MOUNTED I/O SHIELD

The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

ALL-ROUND PERFORMANCE

Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.

POWER ARCHITECTURE

8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

EIGHT-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

DDR5 DOMINATION

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-I, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

AEMP II

ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-I to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

VRM HEATSINK ARRAY

Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.

M.2 HEATSINK

A large heatsink covers the front NVME SSD slot to help keep your drive at optimal temperatures for consistent performance and reliability.

M.2 BACKPLATE

Additional mass is underneath the slot to deal with the thermal load of high-performance M.2 drives.

CPU FAN HEADER

Positioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers.

AIO PUMP FAN HEADER

A dedicated PWM/DC header connects self-contained water-cooling setups.

4-PIN FAN HEADER

The Strix B760-I features a chassis fan header that auto-detects any PWM or DC fan connected to it.

LEADING CONNECTIVITY

Massive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal clear on-board audio keeps you immersed in the experience.

PCIE PERFORMANCE

The x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage comes courtesy of the pair of PCIe 4.0 M.2 slots, one under the front-side heatsink, and the other positioned on the back to save space.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

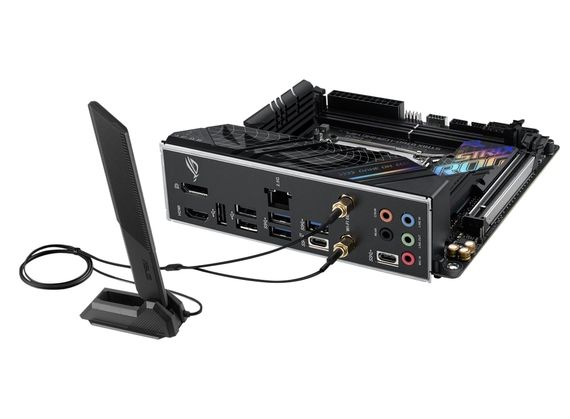

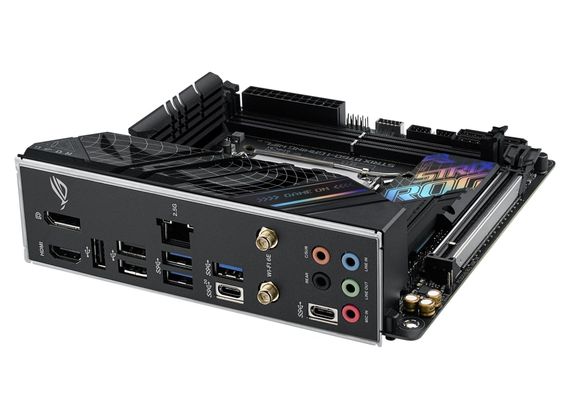

USB

The Strix B760-I comes loaded with multiple high-speed USB options. Five of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-I implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
